Thee Solar Factory does NOT support Industrial Solar

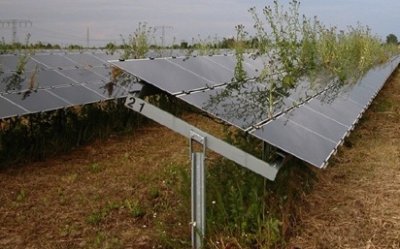

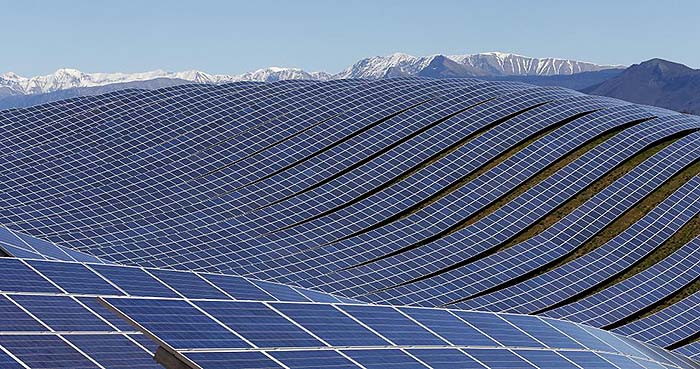

Our panels are not designed to be assembled in large fields for the reasons shown in these photos.
We think large solar farms are horrendous when faced with square miles of parking lots and roofs that could be covered.

What is a Solar panel?

Here are the components of a typical framed solar panel that uses a aluminum support frame.
Thee Solar Factory produces Frameless Solar Panels.
Image courtesy of Clean Energy Reviews.info

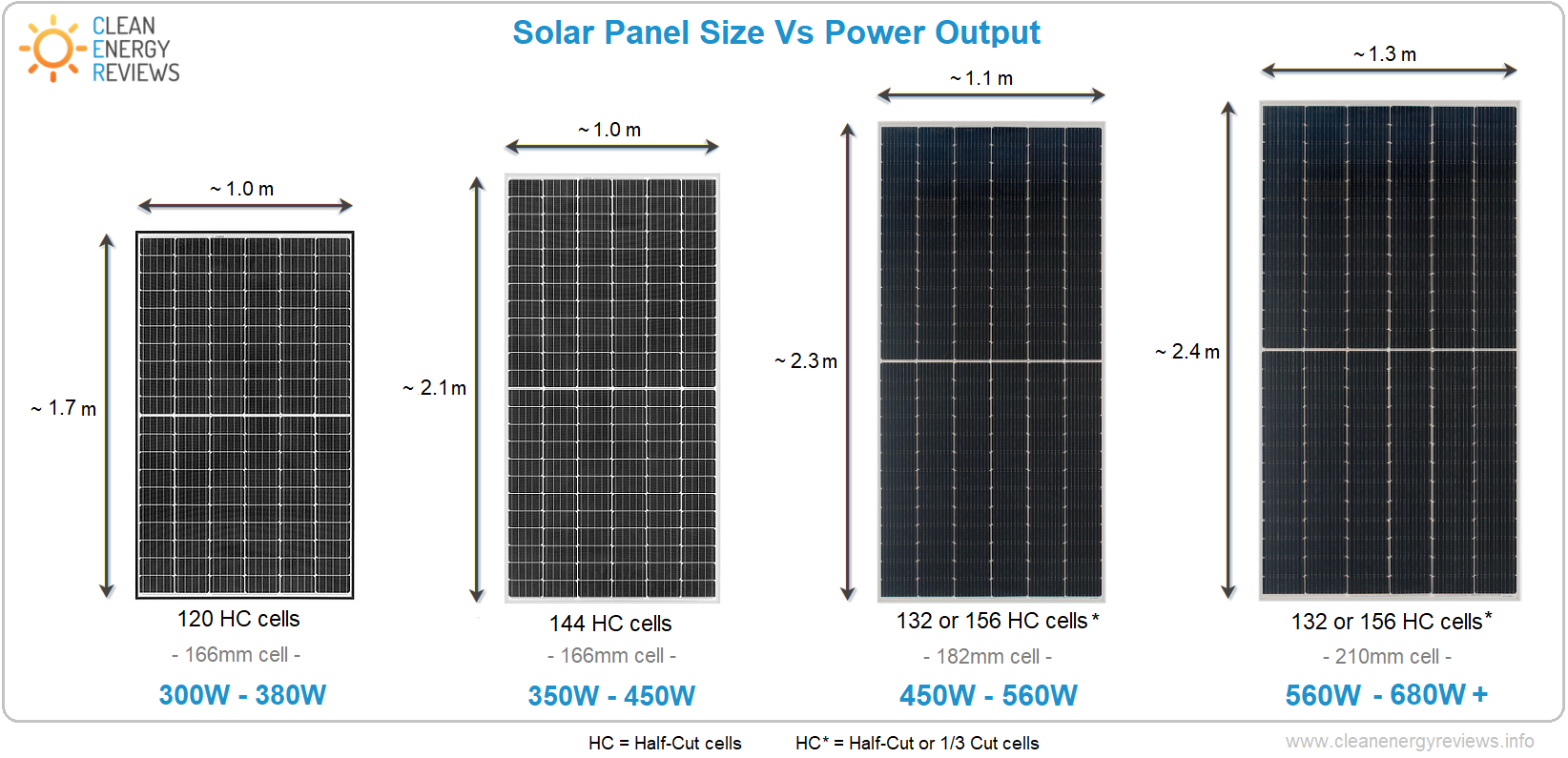

What is the Typical Size of a Solar Panel?

ALL competing solar panels are 39.1″ to 51″ WIDE.
Thee Solar Factory produce our Solar Panels at a width that matches the span of roof truss / rafters; namely 16″ and 24″ wide.
Image courtesy of https://www.solarinsure.com/solar-panel-dimensions-efficiency

What are the common PhotoVoltaic Cell sizes?

Thee Solar Factory could not make solar panels that perfectly fit between roof truss / rafters until 2020 when the 182mm PV cell was first produced. PV cells smaller or larger would leave large gaps within the solar panel.
Image courtesy of Clean Energy Reviews.info

What are the common Solar Panel lengths?

THEE Solar Factory produces 60” long full panels & 30” long half panels.
Image courtesy of https://www.solarinsure.com/solar-panel-dimensions-efficiency

What are the common Solar Panel Weight?

THEE Solar Factory produces 4 panel sizes that weigh between 16 lb for largest to 6 lb for smallest.
NOTE: OSHA limits weight that 1 person can pick up to 50 lbs.
Larger panels are heavier and catch wind requiring more work by the installer.
Image courtesy of https://www.solarinsure.com/solar-panel-dimensions-efficiency

Why did THEE Solar Factory choose 4mm glass?

For Competing Solar Panel Manufacturers, width of solar panel does not relate to thicker glass. They only care about cost of solar panel.
Even tho we have the most narrow solar panel design, we use the thickest glass because we want the strongest solar panel to widthstand
wind lifting effects no matter where the solar panel is placed on the roof.
Photo shows thickness of 5 Thee Solar Panels.

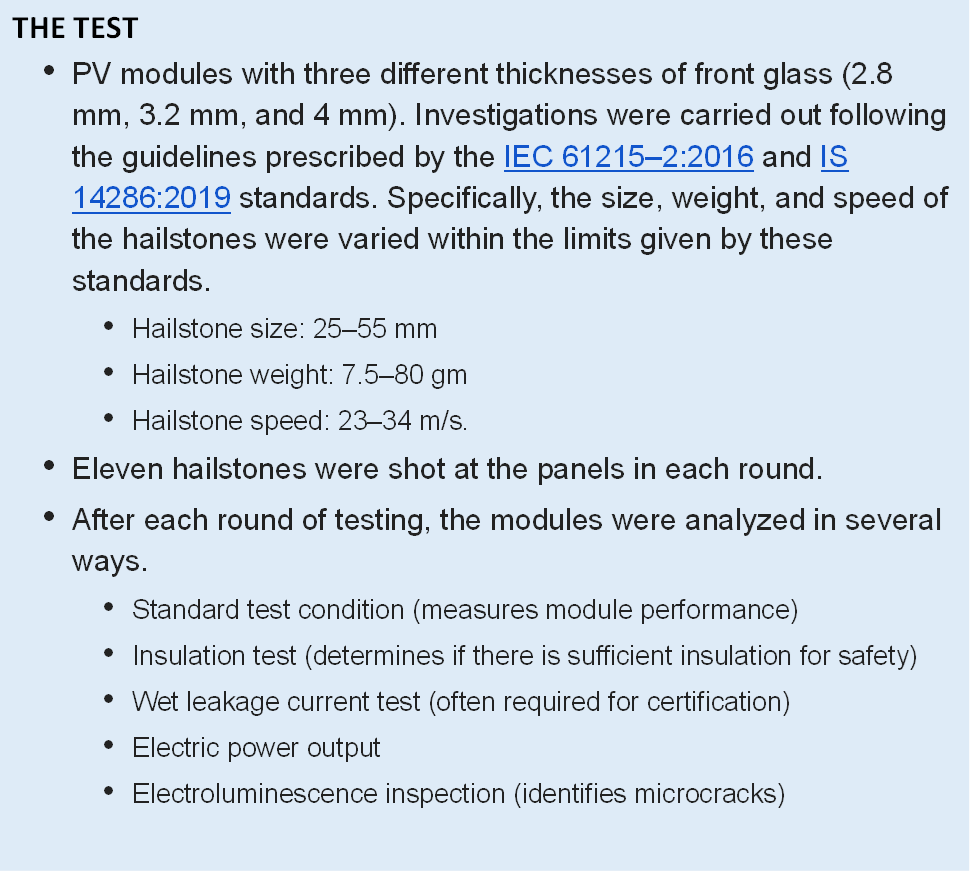

Test - Hail Stone Size vs Glass Thickness

Thee Solar Factory uses 4mm thick glass so that our panels will be able to survive larger hail stone events unlike our competitors.

Hail Test vs glass thickness courtesy of work published in Renewable Energy, is “Analysis of the hail impacts on the performance of commercially available photovoltaic modules of varying front glass thickness” (DOI: 10.1016/j.renene.2022.12.061).

What are common Solar Panel Efficiencies?

Monocrystalline PV cells are more efficient that Polycrystalline (which aren’t shown on this chart).
What this chart shows is there isn’t much difference in efficiency between monocrystalline solar panels.
THEE Solar Factory only produces monocrystalline PV solar panels with the highest efficiency that we can find.
Image courtesy of https://www.solarinsure.com/solar-panel-dimensions-efficiency

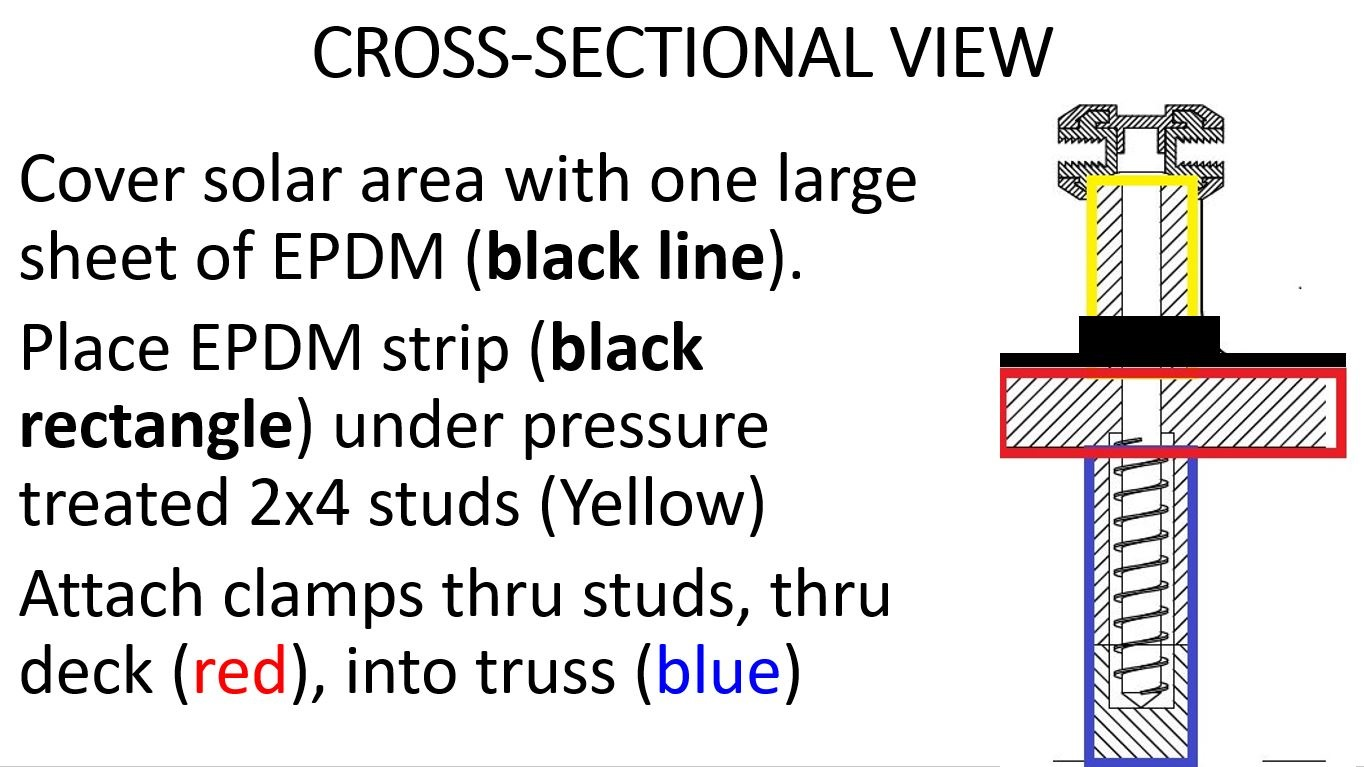

Where to place THEE SOLAR PANELS on your roof

The following rules must be followed when installing our solar panels or wind may rip panels from roof:
Our panels are designed to withstand the greatest wind forces when placed almost anywhere on your roof and almost anywhere north of Miami, FL.

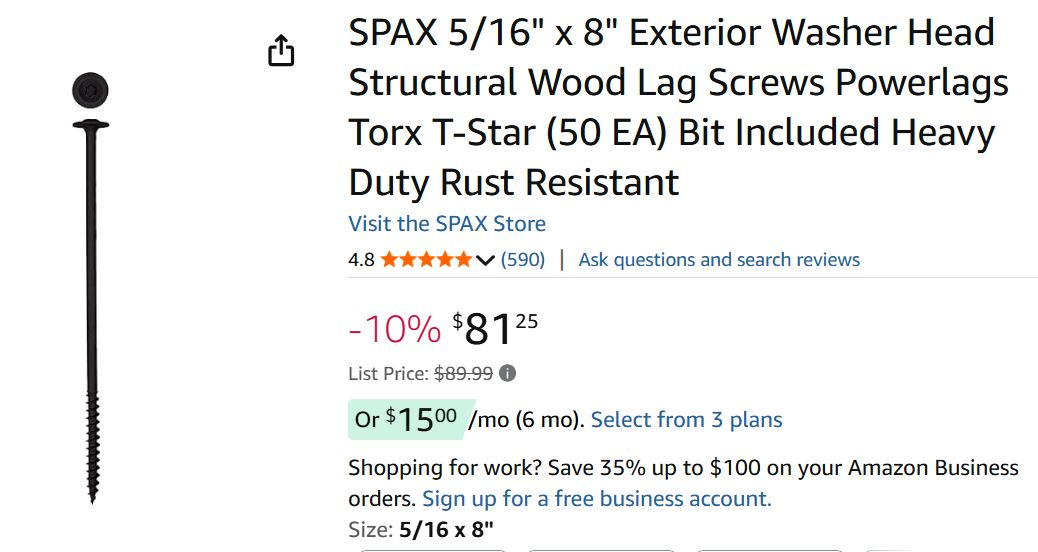

Grade 5 or better 5/16″-18 screws that are inserted in through the top clamp and must penetrate at least 3″ into roof truss or rafters.

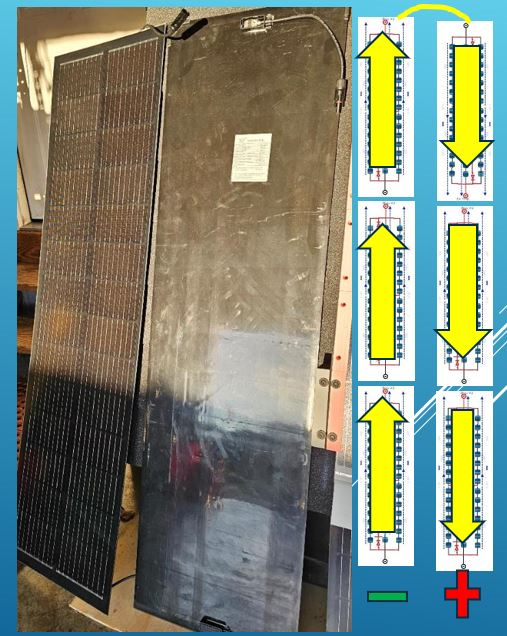

Panel to Panel Wiring

Our panels are wired like a battery with a positive end and a negative end.
The cable are only long enough to reach the next panel.
Just simply plug one panel into the next one in the column until you reach the top of the column with all of the positive ends on top.
Connect to the adjacent column so now all of the positive ends are on bottom.
When you reach the bottom of the column, you can take the two cables and plug them into the microinverter. .

Warranties & durability

25-year output warranty to 80% typical. Expect ~0.7%/year degradation depending on climate and maintenance.
